Product Detail

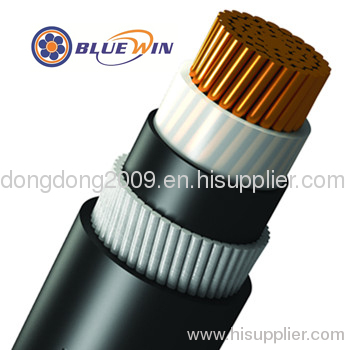

AS/NZS/BS/IEC Low Voltage Power Cable
Application:
This cable is primarily used for main power supply.it can also be used for industrial installations such as in cable trenches ,in cable ducts,in cable trunking,in switchgears and in power stations.this cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Operating temperature:
90℃
Voltage rating:
600/1000V
Construction:
CU/XLPE/PVC/SWA/PVC,Plain annealed strand copper conductor,XLPE insulated,PVC Bedding,Galvanized steel wire armoured,PVC Outer sheath
Core identification:
2C+E:Red,Black,&Green/Yellow 3C+E:Red,White,Blue &Green/Yellow 4C+E:Red,White,Blue,Black & Green/Yellow
Outer sheath color:
Orange or as customer order
Followed standard:
AS/NZS 5000.1 IEC60502
This cable is primarily used for main power supply.it can also be used for industrial installations such as in cable trenches ,in cable ducts,in cable trunking,in switchgears and in power stations.this cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Operating temperature:
90℃
Voltage rating:
600/1000V
Construction:
CU/XLPE/PVC/SWA/PVC,Plain annealed strand copper conductor,XLPE insulated,PVC Bedding,Galvanized steel wire armoured,PVC Outer sheath
Core identification:
2C+E:Red,Black,&Green/Yellow 3C+E:Red,White,Blue &Green/Yellow 4C+E:Red,White,Blue,Black & Green/Yellow
Outer sheath color:
Orange or as customer order
Followed standard:
AS/NZS 5000.1 IEC60502
